VCM-P MultiShear™ PMB Colloid Mills

VCM-P colloid mills are built for polymer modified bitumen. The VIMPO MultiShear™ multi-stage tool grinds and homogenises SBS, EVA, APP and crumb rubber in a single pass. Two sizes: 10 t/h and 20 t/h.

Models

VCM P-10 ›10 t/h · DN65 / DN65 · 2950 rpmProduct temp. ≤ 210 °C · ≤ 5,000 mPa·s (cP)VCM P-20 ›20 t/h · DN100 / DN100 · 2950 rpmProduct temp. ≤ 210 °C · ≤ 5,000 mPa·s (cP)

Features

VIMPO MultiShear™ multi-stage proprietary rotor-stator toolDraw-in, shearing/grinding, homogenising in one pass

Rotor and statorHardened alloy steel 42CrMo4 (1.7225) with induction hardened teeth; housing ring Alloy steel 42CrMo4, hardened

Working gap OPEN / CLOSED by axial shaft movementMechanical setting standard, hydraulic actuator with remote OPEN/CLOSED signal optional

Separate bearing housing (GG25) with grease lubricated rolling bearingsBearings outside the hot product zone

Shaft seal: gland packing, uncooled (GP) standard · single mechanical seal (MS) optional

Heating jacket on housing and stator support, thermal oil or electric cartridges with PT100

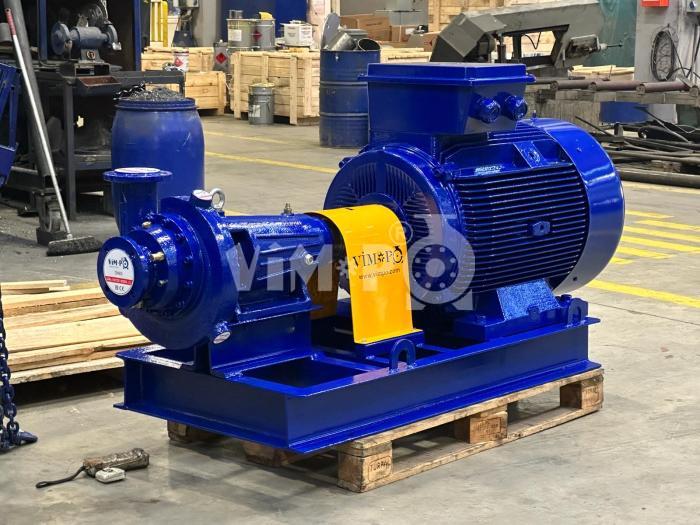

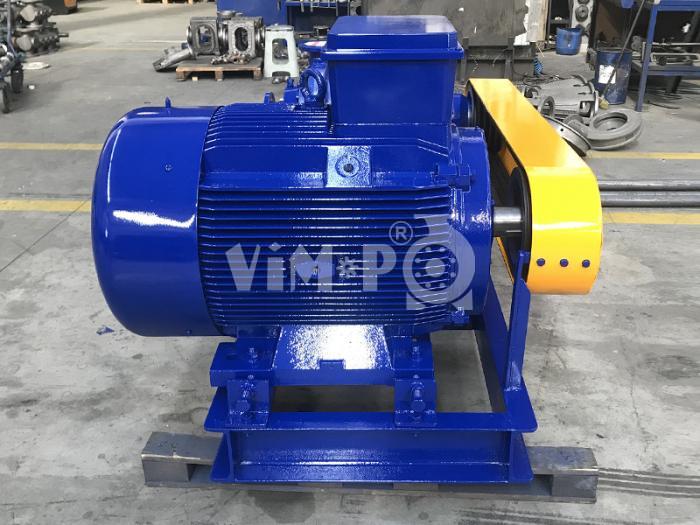

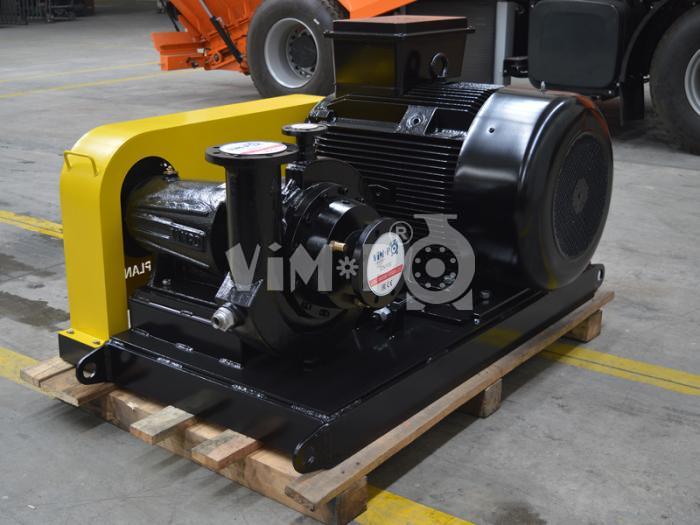

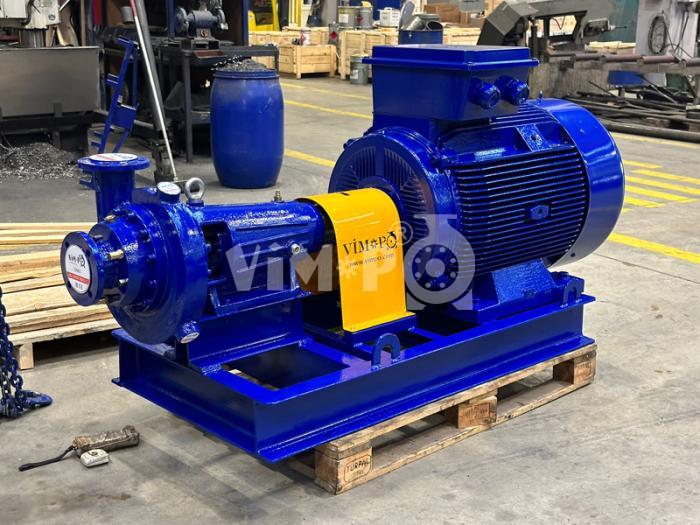

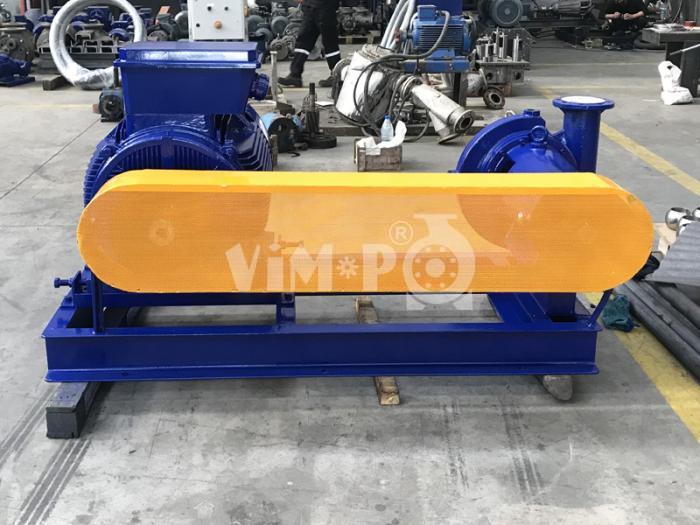

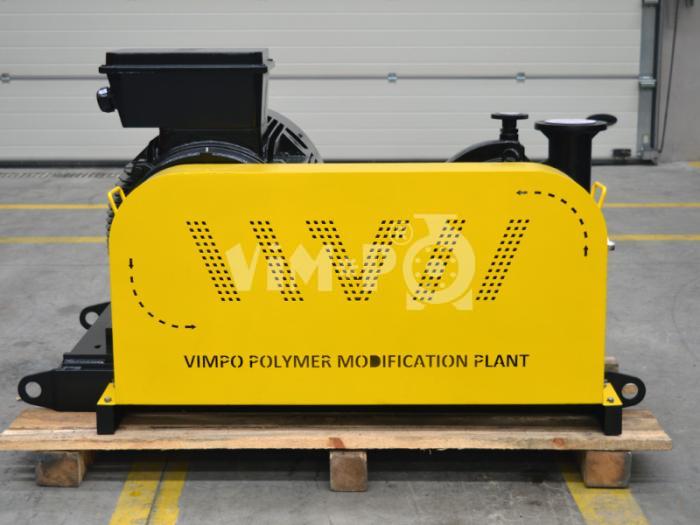

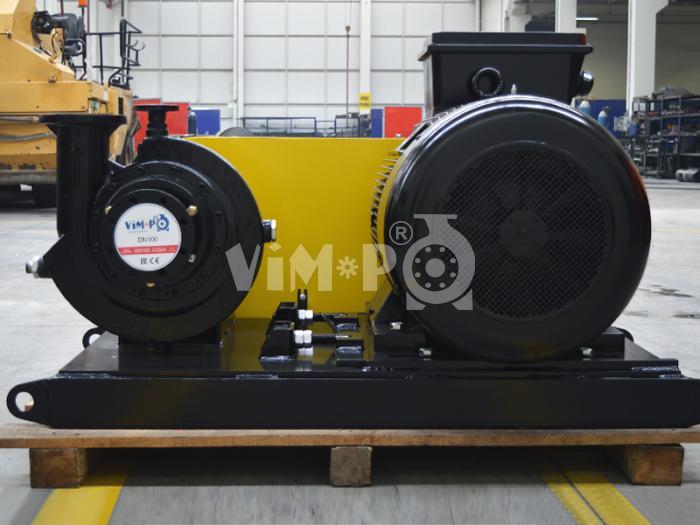

Machine, motor, ROTEX coupling and guard pre-assembled on a common steel baseplate

Applications

SBS / SB modified bitumen (PMB) for roads, single pass 3–7 % polymer

EVA, APP, TPU and IPP modified bitumen for roofing and waterproofing membranes

Crumb rubber modified bitumen (CRMB)Wet process

Highly modified asphalt (HiMA) with recirculation, polymer up to 10 %

Grinding of polymer granulate ≤ 5 mm to < 0.2 mm dispersed phase

Why Vimpo Pumps

1978

Pump makers since

Nearly five decades of pumpsVimpo started in 1978 as a pump workshop, turning pump bodies on a lathe. Hot, viscous fluids have been our work ever since.

Ex stock

Spare parts

Minimum downtimeSpare parts from Ankara stock, our dealers and Vimpo Maschinen in Herford; service and commissioning support in English, German and Turkish.

Declaration of conformity

SafetySupplied with CE declaration of conformity, material certificates and operating manual.

Hardened

Rotor and stator, 42CrMo4

Built for years of serviceMulti-stage rotor and stator in hardened 42CrMo4 alloy steel; 42CrMo4 / AISI 4140 tempered shaft; heating jacket on housing and stator support.

ISO 9001

ISO 14001 · ISO 45001

Quality you can documentISO 9001, ISO 14001 and ISO 45001; CE and EAC. Every unit ships with material and test certificates, declaration of conformity and manual.

40+

Countries with Vimpo equipment

With you after deliveryOur dealers and Vimpo Maschinen in Herford support Vimpo equipment in more than 40 countries.

Trusted by Colas · Tüpraş · Pumangol · Portus Exim Petrokimya · BaltTransOil · Sefa Kimya · Kolin İnşaat · Konya Çimento · Başkent Çimento · Akdeniz Bitüm · Ulusoy Lojistik · Hersek Gemi İnşa · İlihan Makina · Sindibad Al Iraq · Jahangir Co · Al Manara Contracting

For more details, share your application with us at sales@vimpo.com — our engineers will select the best model for you.
