VDK-40 Bracket Mounted Internal Eccentric Gear Pump

Name: VIMPO PUMPS VDK-40 Bracket Mounted Internal Eccentric Gear Pump
Brand: VIMPO PUMPS

VDK-40 is a VIMPO PUMPS bracket mounted internal eccentric gear pump made by Vimpo Makine A.Ş. in Ankara, Türkiye. It has a displacement of 0.058 l/rev, DN40/DN40 ports, a differential pressure up to 16 bar and a temperature up to 230 °C. It operates from 10 to 55,000 cSt.

Series: VD-VDK series. VIMPO PUMPS is a brand of Vimpo Makine A.Ş., founded in 1997 in Ankara.

VDK-40 datasheet (PDF, English)VDK-40 teknik föy (PDF, Türkçe)Request a quote

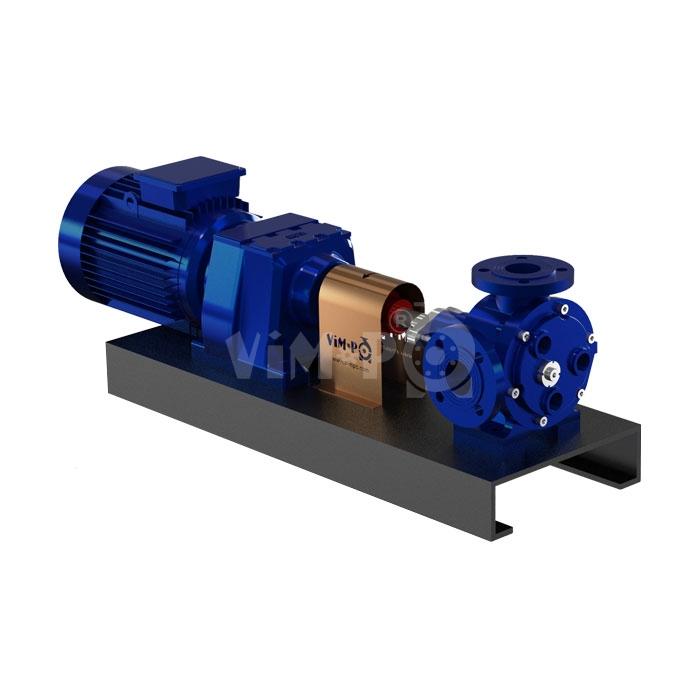

VIMPO PUMPS VDK-40 bracket mounted internal eccentric gear pump — representative VDK series photo

This photo is representative — a VDK series pump; it is not an exact image of this model.

0.058 l/rev

Displacement

16 bar

Diff. pressure

230 °C

Temperature

55,000 cSt

Viscosity

Operating principle and construction

VDK-40 is a positive displacement transfer pump working on the internal eccentric gear principle. The volume formed between the driven outer rotor and the freely rotating inner gear expands on the suction side to draw the fluid in and contracts on the discharge side to push it out. Flow is proportional to speed and independent of pressure. Efficiency rises with viscosity because internal slip decreases. In the bracket mounted construction the shaft bearing is separated from the casing, so drive loads and shaft overhang are not carried by the pump casing.

Features

Bi-directional
reversing the motor swaps suction and discharge

Self-priming
suction lift up to 3 m at sea level

Low speed operation
pulsation-free, quiet transfer with low wear

Thermal oil heating jacket on casing and cover
option (code T)

Bearings lubricated by the pumped fluid
no separate lubrication circuit

Internals accessible by removing the cover; serviced without disturbing pipework or motor

Suction and discharge ports at 90° to each other
side inlet, top outlet

Rolling-element bearings in the bracket
drive loads are not carried by the pump body

Flow regulated by the front-accessed adjusting drum

VDK-40 technical data

Property	VDK-40
Displacement (q)	0.058 l/rev
Suction / discharge	DN40 / DN40
Connection	Flange EN 1092-2 PN25 (standard) · ANSI 150/300 optional
Differential pressure (Δp)	1 – 16 bar
Temperature	0 – 230 °C
Viscosity	10 – 55,000 cSt
Speed range	175 – 1450 rpm
Port arrangement	90° — side inlet, top outlet
Heating	unheated casing (standard) · thermal oil jacket (T) — option
Shaft seal	gland packing (GP) — standard · mechanical seal (MS)
By-pass	integrated by-pass valve — option (BP)
ATEX	II 1/2G Ex h IIB T4 Ga/Gb — zones 0 and 1, liquid ≤ 130 °C, Δp ≤ 12 bar

Values from the current datasheet (TDS-VDK40-EN-R4). The duty point is confirmed with the order acknowledgement.

Model code examples

A hyphen separates the fields. An omitted field means the standard of that field. Bare shaft pump examples:

VDK40-DN40-GP — Bare shaft pump, unheated, gland packing — no drive, motor or speed field
VDK40-DN40-T-GP — Bare shaft pump with thermal oil jacket

Applications

Bitumen and emulsion
Bitumen, PMB, bitumen emulsion and oxidised bitumen transfer; Tanker loading and unloading lines

Fuel and thermal oil
Fuel oil service tanks — diesel, HFO, LFO; Thermal oil heating circuits

Chemicals, paints, resins
Resins, polymers and adhesives; Paint, solvent and varnish industry; Chemical industry — acids, alkalis, glycols (stainless version)

Food and cosmetics
Food and feed industry — edible oils, fats, molasses, glucose syrup, chocolate (stainless version)

Application images are representative.

VDK-40 in the series

Model	Displacement (q)	Differential pressure (Δp)	Speed range
VDK-40 · this page	0.058 l/rev	1 – 16 bar	175 – 1450 rpm
VDK-50	0.440 l/rev	1 – 16 bar	90 – 450 rpm
VDK-65	0.830 l/rev	1 – 16 bar	90 – 450 rpm
VDK-80	1.852 l/rev	1 – 16 bar	90 – 456 rpm
VDK-100	1.852 l/rev	1 – 14 bar	90 – 456 rpm
VDK-150	5.556 l/rev	1 – 14 bar	60 – 300 rpm

Datasheet

VDK-40 datasheet: properties, model code, dimensions, materials and selection tables.

VDK-40 datasheet (PDF, English)VDK-40 teknik föy (PDF, Türkçe)

Related products and notes

Other models in the series: VDK-50, VDK-65, VDK-80, VDK-100, VDK-150. Related notes: why bitumen needs a gear pump, by-pass valve, heating jacket. Application: bitumen and asphalt. Selection: find pump.

Frequently asked questions

Which liquids does VDK-40 pump?

VDK-40 pumps liquids from 10 to 55,000 cSt up to 230 °C. Applications: Bitumen, PMB, bitumen emulsion and oxidised bitumen transfer; Fuel oil service tanks — diesel, HFO, LFO; Thermal oil heating circuits; Resins, polymers and adhesives.

What is the maximum differential pressure of VDK-40?

16 bar in the standard version. 12 bar in the ATEX version.

How do I calculate the flow of VDK-40?

Theoretical flow = displacement × speed. For VDK-40, q = 0.058 l/rev. When viscosity increases, the permitted maximum speed decreases. Use the capacity table in the datasheet and our note on viscosity and speed to select the pump.

Is an ATEX version of VDK-40 available?

Yes. The marking is II 1/2G Ex h IIB T4 Ga/Gb, zones 0 and 1. The maximum liquid temperature is 130 °C. Details: ATEX gear pump note.

Is VDK-40 available with a heating jacket?

Yes. For liquids that become solid when cold, such as bitumen, the casing is heated. The options are in the technical table. Comparison: thermal oil or electric.

Where is the VDK-40 datasheet?

Download the PDF from the Datasheet section on this page (English and Turkish).

How do I get a quotation for VDK-40?

Send the liquid, temperature, viscosity, flow and pressure by WhatsApp or the contact form. We send a quotation with the datasheet.
